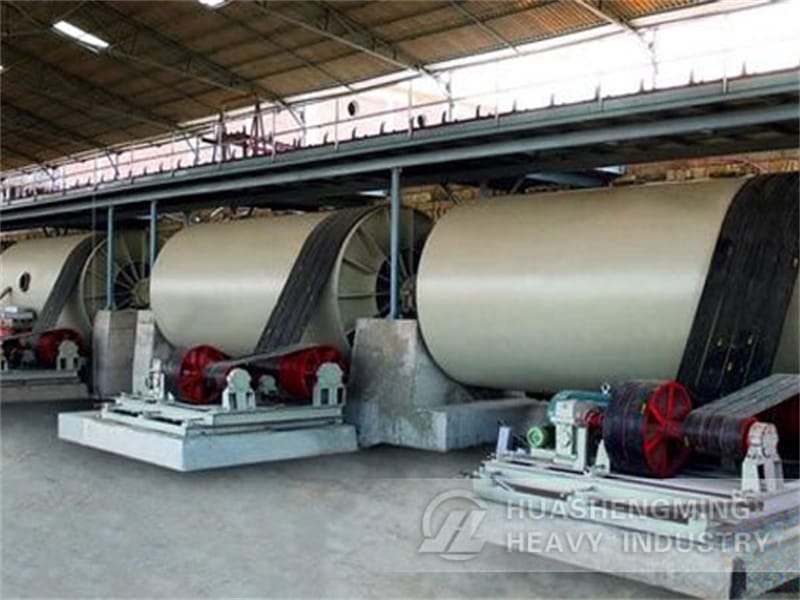

Ceramic Ball Mill mainly use for material mixing, grinding, size uniforming, energy saving. Dry grinding and wet grinding, different liner plate to satisfy with all demands. Size of final products is controllable by grinding time. Soft-start motor reduces breakaway start current.
When the Ceramic Ball Mill working, the materials are sent to the hollow cylinder for grinding through the hollow shaft.There are all kinds of grinding media with different diameters installed in the cylinder. Rotation of the horizontal cylinder creates centrifugal forces which elevates the balls to a certain height where they fall back, grinding the materials.
| Model | Ball?load (t/batch) |
Rotate?speed (r/min) |
Motor?power (kw) |
Liner?plate?material |
| 600×700 | 0.05 | 50 | 2.2 | ceramic,silica,rubber,metal(motor?diference?exist according?to?different?material) |
| 800×600 | 0.075 | 42 | 3 | |
| 900×1200 | 0.2 | 38.5 | 5.5 | |
| 1300×1500 | 0.5 | 33 | 7.5 | |
| 1500×1800 | 1.2 | 28.5 | 11 | |
| 1800×2000 | 1.5 | 24 | 15 | |
| 2600×2800 | 5 | 16.5 | 37 | |
| 3000×3800 | 10 | 14.5 | 57.2 |
