Applicable materials:Limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate, quartz, active carbon, ceramic, coal ect.
Application scope:Limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaolin, bentonite, medical stone, rock phosphate, quartz, active carbon, ceramic, coal ect.
YGM Series High Pressure Suspension Grinding Mill is suitable for grinding the barite, limestone, kaollnite, ceram and slags, etc. which below scale 9.3 of Moth and below 6% shadness and 280-odd sorts of non-inflammable and non-explosive stuff in the trades of mining, metallurgy, chemical engineering and building material for high fine powder generating and processing . The Product size is adjustable in the range of 80-425 mesh. It is possible to produce 30-80 mesh coarse powder through special device in the machine.

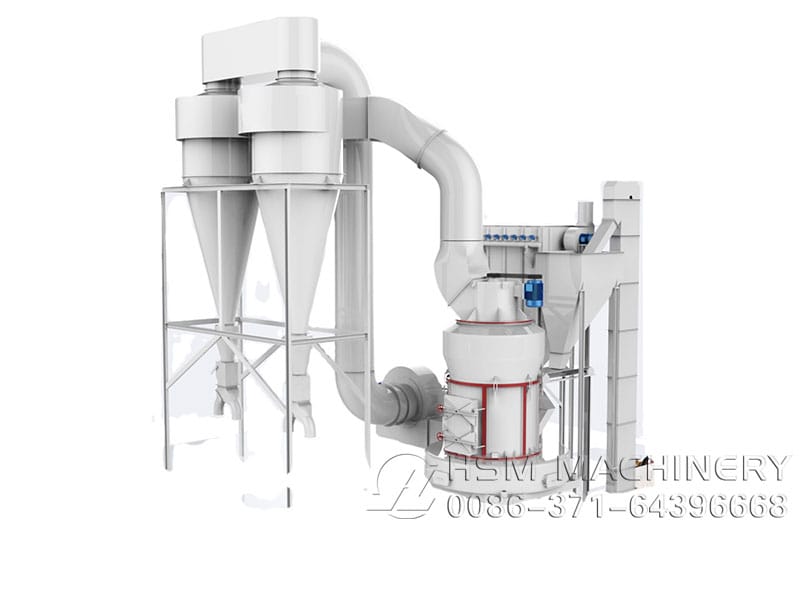

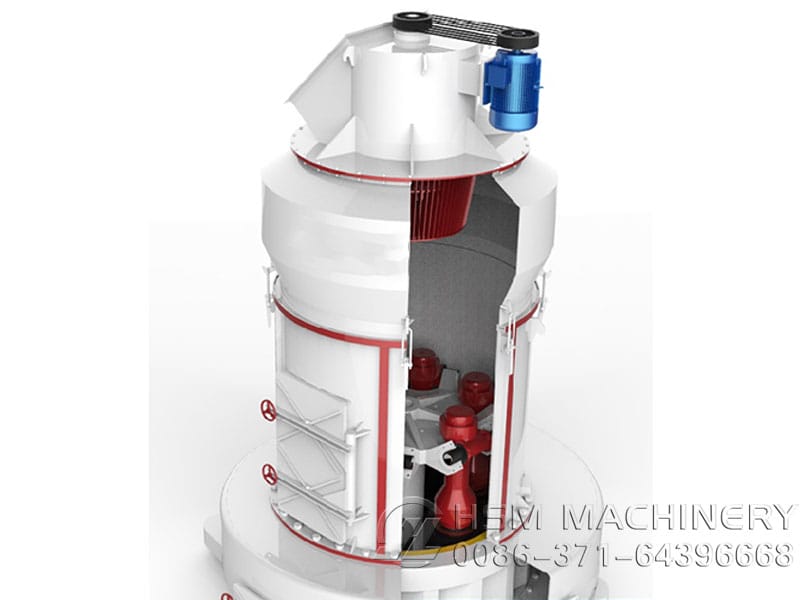

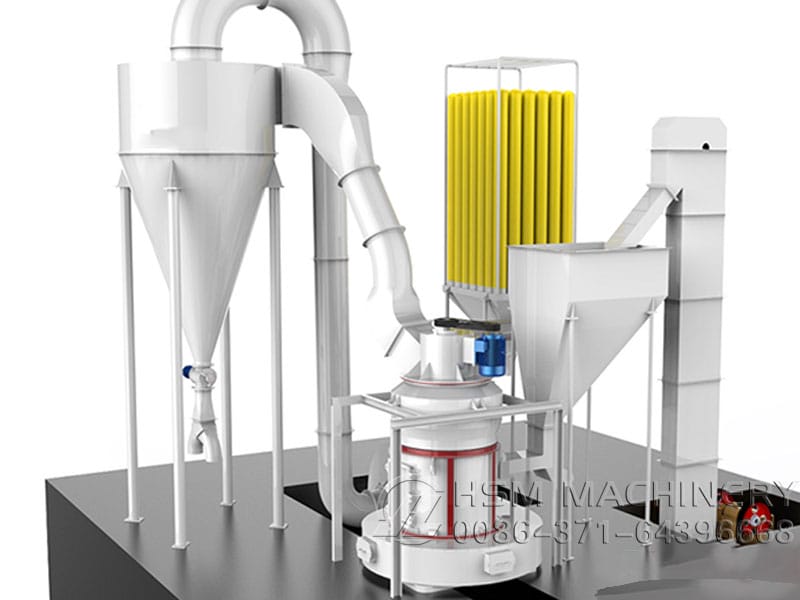

Large stuffs are delivered to bunker by elevator after crushed, then to chamber by electric feeder. In mainframe, shovels scoop up stuffs into the parts between rollers and ring, the processed powders are blowed up to analytical engine with wind entering chamber by blower, part of powders which can not be up the demand fineness will fall back to be grinded, left(that is final product) with airflow enter concentrator and divided with air then discharged from discharge vavle. Air returns to blower and circles, flowing in minus state.
| Model | Piece of?roller |
Size?of?the roller?(mm) |
Size?of?the ring?(mm) |
Feed size(mm) |
Fineness?of powder?(mm) |
Capacity (t/h) |
Motor power(kw) |
Weight?(without motor)(t) |
| YGM65 | 3 | Φ210×150 | Φ650×150 | ≤15 | 0.033-0.613 | 0.4-1.8 | 15 | 3.6 |
| YGM75 | 3 | Φ260×150 | Φ780×150 | ≤15 | 0.033-0.613 | 1-3 | 18.5 | 4.8 |
| YGM85 | 3 | Φ270×150 | Φ830×150 | ≤20 | 0.033-0.613 | 1.2-4 | 22 | 8 |
| YGM95 | 4 | Φ310×170 | Φ950×170 | ≤25 | 0.033-0.613 | 2.1-5.6 | 37 | 14 |
| YGM130 | 5 | Φ410×210 | Φ1280×210 | ≤30 | 0.033-0.613 | 2.5-9.5 | 75 | 24 |
