The mineralized river bed sand gravel crusher(Double-roll crushers) represent an excellent solution for crushing riverbed gravel in mineral processing, particularly in scenarios where product shape is critical and minimizing fines generation is a priority. 1.. What is “mineralized riverbed gravel”? Mineralized riverbed gravel typically refers to: A mixture of sand and gravel within natural alluvial deposits Containing heavy minerals such as native gold, platinum group metals, cassiterite, ilmenite, and zircon Particle size: 0–150mm, commonly 5–60mm pebbles + sand Physical properties: High hardness (predominantly quartz, flint, granite pebbles), highly abrasive, often containing silt and water 2.Advantages of Double Roll Crushers (Why Are They Suitable?) Excellent Particle Shape: Employing the principle of compression crushing, double roll crushers produce material particles predominantly in a cubic shape with low content of needle and flake particles. This is highly advantageous for applications requiring well-shaped aggregates, such as concrete aggregates. Minimal Over-Grinding: Compared to hammer crushers or impact crushers, double roll crushers generate a lower proportion of powder (stone dust) during crushing. This better preserves the desired particle size of sand and gravel, increasing the yield of finished products. Simple Structure, Easy Maintenance: The mechanical structure is relatively straightforward, making operation and maintenance relatively simple with…
Ores for gold extraction and processing crusher Also known as a double-roll crusher (including double-tooth roll crushers), it is fully capable of serving as the core crushing equipment for gold mining and processing, demonstrating significant advantages particularly in the medium and fine crushing stages. 1. Technical Suitability: Feasibility of Gold Ore Crushing Hardness and Material Compatibility The double-roll crusher can process gold ores with compressive strength ≤250MPa, covering quartz vein-type gold deposits (typically 150-200MPa hardness) and certain superhard rock types. Roll surfaces utilize high-chromium manganese steel or wear-resistant alloy (hardness HRC≥60), delivering over 2 years of service life and significantly reducing maintenance costs. Precision Particle Size Control Hydraulic or mechanical roll gap adjustment (±1mm precision) enables stable output particle sizes between 1-5mm, meeting optimal sizing requirements for leaching/flotation processes. Over-crushing rate <10% minimizes loss of fine gold particles. Adaptability to Wet and Sticky Materials The toothed roller design handles gold ore with high clay content or moisture content ≤35%, using shear force to strip viscous minerals and prevent jamming (traditional jaw/cone crushers are prone to clogging). 2. Core Advantages: Competitive Edge in Gold Ore Crushing Applications High Efficiency & Energy Savings Layer compression crushing principle saves 30%-45% electricity compared to…

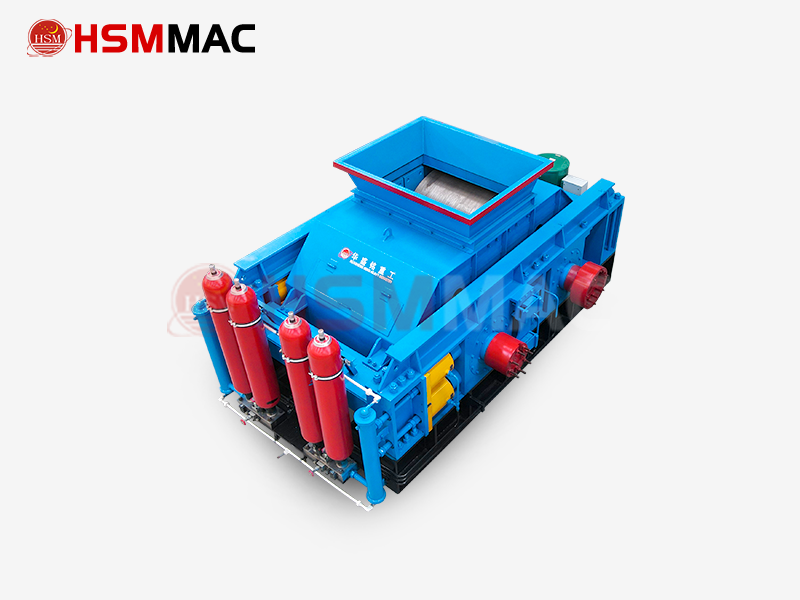

Double-roll crushers are fully capable of serving as crushers for steel slag and graphite crusher, and are often the preferred solution for crushing these materials. The key lies in tailored equipment configuration based on material properties—selecting appropriate roller skin materials, roller surface profiles, and necessary auxiliary equipment (such as magnetic separators) to address the hard abrasiveness of steel slag and the soft brittleness of graphite. When properly configured, double-roll crushers deliver exceptional performance in crushing steel slag and graphite, offering high efficiency, energy savings, and superior product quality. 1.Summary Comparison Features Crushed Steel Slag Crushed Graphite Core Advantages High-efficiency separation of metal and slag, excellent particle shape, minimal over-crushing Extremely low over-grinding rate, anti-adhesion, controllable particle size Roll Surface Selection Ultra-wear-resistant tooth surfacesSmooth Rollers Smooth Rollers Cost-Effectiveness 30% energy savings, extended wear part lifespan Low power consumption, minimal maintenance costs Material Properties High hardness, high abrasion resistance, metal content Soft, brittle, self-lubricating

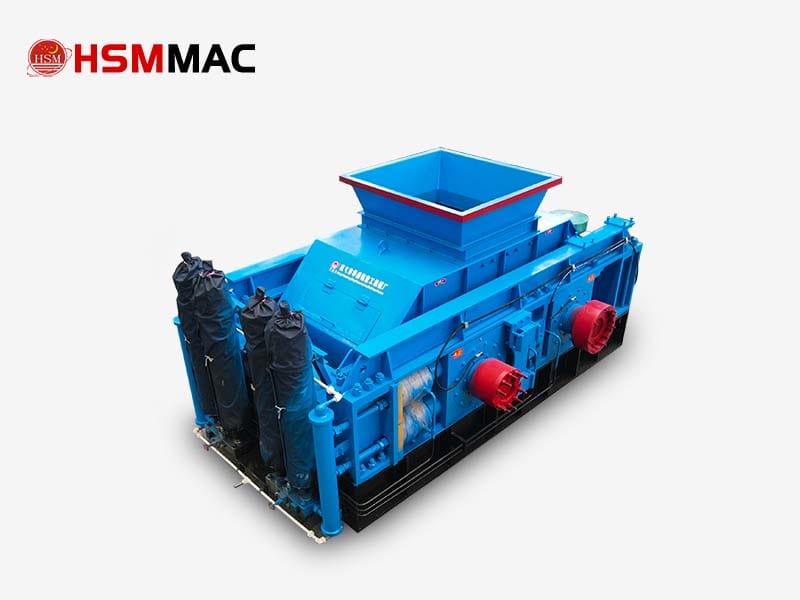

Basalt sand-making machines are commonly referred to as double-roll sand-making machines or double-roll crushers. They efficiently crush basalt through the relative rotation of two rolls, utilizing compression and shear forces. To enhance performance and operability, hydraulic double-roll sand makers and hydraulic double-roll crushers are also available on the market. These units incorporate hydraulic adjustment systems that precisely control the gap between the two rolls, flexibly adapting to varying particle size requirements. They also offer outstanding wear resistance and low maintenance costs, making them an ideal choice for the basalt processing industry. 1.What are the models of basalt sand making machines? They can be categorized into large, medium, and small sizes based on model specifications. 2PGT400×250, 2PGT400×400, 2PGT610×400: With an hourly output of approximately 2-20 tons, these are small spring-loaded pebble sand making machines suitable for investment by small to medium-sized sand plants. 2PGT750×500, 2PGT800×600, with an hourly output of 10-50 tons, are medium-sized spring pebble sand makers. This model is suitable for new sand plants with relatively low investment costs. 2PGY750×500, 2PGY800×600, 2PGY800×800, 2PGY1000×800, with an hourly output of 20-80 tons, are medium-sized hydraulic pebble sand makers. Hydraulic models offer greater intelligence, higher output, and more cost-effective operation. 2PGY1000×1000, 2PGY1200×1200,…
Double-roll crushers, also known as double-roll sand makers, utilize a roller design. The intense pressure generated between the two rollers crushes materials into powder and granular forms, effectively handling both dry and wet materials. Widely applied in large coal preparation plants, mining, construction, highways, metallurgy, chemical, cement, and other industries, it primarily processes limestone, granite, slag, sandstone, shale, and various other mineral materials for medium and fine crushing. Two motors drive two sets of roller shafts to squeeze and grind the material. The hydraulic double-roll crusher is designed for fine crushing operations with feed sizes under 80mm and finished product requirements ranging from 50 mesh to 20mm. 1.Advantages of Double Roll Crushers 95% Sand Production Rate The double roll crusher builds upon traditional sand-making technology by integrating six intelligent systems, installation technology systems, finished product inspection systems, and more. This enhances its output, production capacity, and service life beyond other sand-making equipment. It is recognized as the premier stone crushing and sand-making machinery. Easy Grain Size Adjustment The double roll crusher allows for effortless adjustment of sand and gravel particle size.The working principle of the double-roll crusher is straightforward—essentially stone-on-stone crushing. Stones naturally falling within the chamber collide with stones…

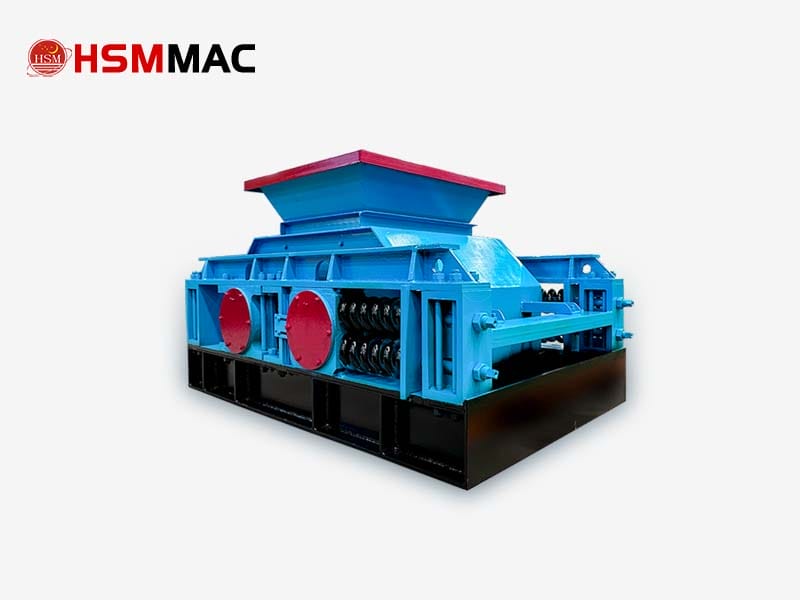

Concrete crushers, also known as double-roll crushers, utilize two motors to drive two sets of rollers that compress and grind materials. The crushed output demonstrates superior performance compared to conventional crushing machinery, capable of processing various rock materials with compressive strengths below 160 MPa. These crushers feature low maintenance costs, minimal water consumption, stable performance, low power consumption, reduced dust generation, and low noise levels. The surging demand for sand and gravel aggregates has driven the growth of artificial sand production. Utilizing concrete crushers for sand manufacturing enables the production of finished products in different specifications and sizes, meeting market requirements. 1.Concrete Crusher Feed Size: 25-100mm Production Capacity: 2-400 t/h Suitable Materials: River pebbles, calcite, quartzite, marble, cobblestones, bentonite, iron ore, bluestone, quarry rock, slag, limestone, weathered sand, diabase, granite, basalt, etc. Application Scope: Suitable for crushing in mining, cement, highway, railway, coal, metallurgy, building materials, and other industries. 2.Working Principle The concrete crusher utilizes two independently driven roller shafts that rotate in opposite directions to generate crushing and grinding forces. Material enters through the feed opening and falls between the rollers, where it is crushed by the opposing rollers before naturally discharging. When encountering excessively hard or uncrushable material,…

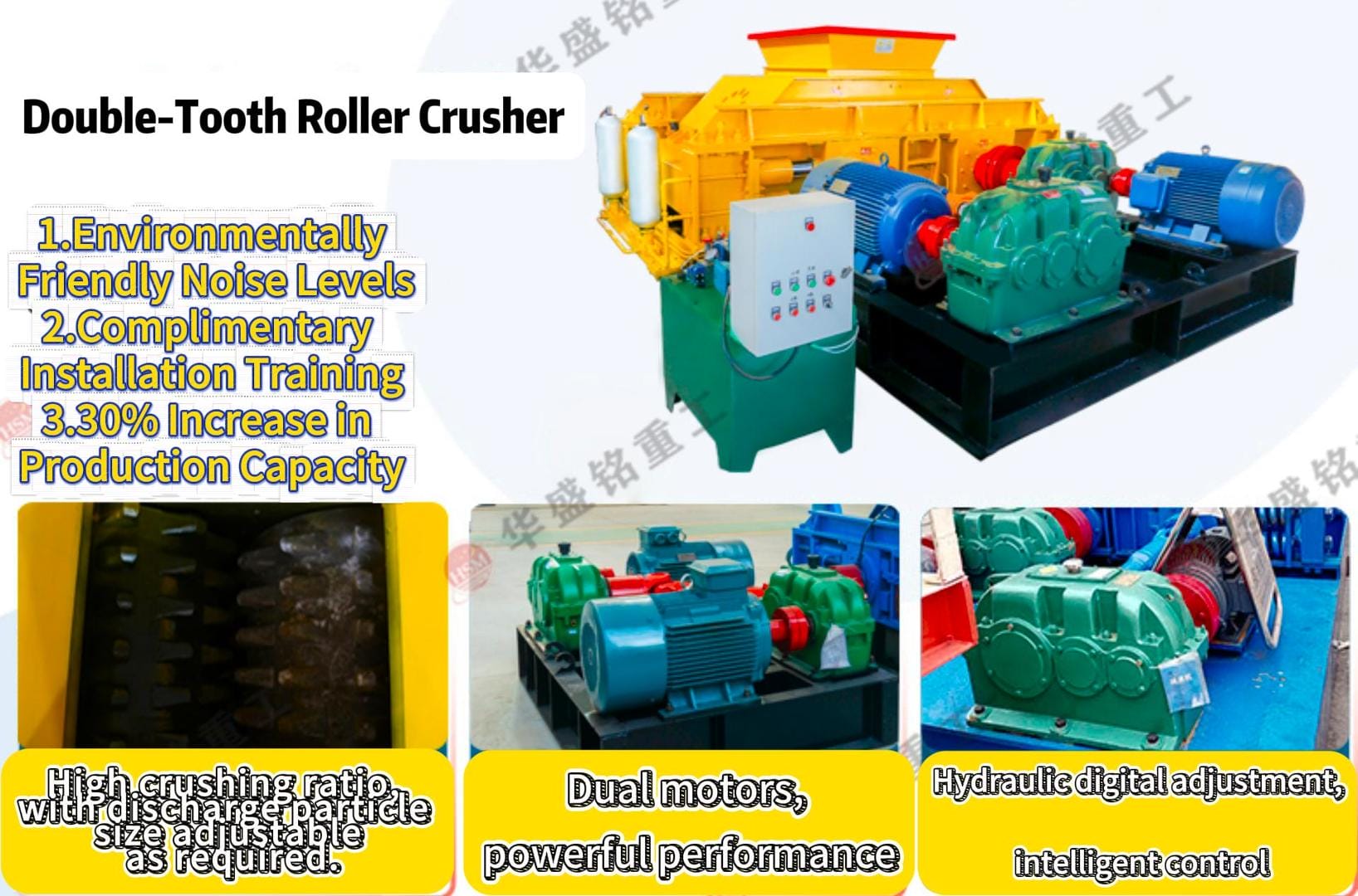

The coal crusher?machine is based on the original double-roll crusher, utilizing spiked rollers to crush materials, hence it is also known as a spiked roller crusher or coke crusher.The claw-type crusher (double-tooth roller crusher) is primarily suited for coarse and medium crushing of brittle lump materials in mining, metallurgy, chemical,and coal industries. It handles large feed sizes with adjustable output particle size and can crush materials with compressive strength ≤160 MPa. Particularly in thecoal industry, the double-tooth roller crusher?is used to crush coke, raw coal, and coal gangue. After impurity and iron removal, gangue removal is unnecessary,allowing direct crushing. The crushed material produced by the double-tooth roller crusher features uniform particle size and low over-fining rate,thereby simplifying coal preparation processes and reducing investment and production costs. 1.Coal Crusher Machine Feed Size: 80-1050 mm Production Capacity: 7-300 tons/hour Suitable Materials: Construction waste, pebbles, bluestone, limestone, granite, basalt, and other materials requiring handling operations. Application Scope: Suitable for coal, metallurgy, mining, chemical, and building materials industries. Particularly suitable for crushing raw coal (including gangue) in large coal mines or coal preparation plants. 2.Working Principle The coal crusher machine utilizes two wear-resistant alloy rollers rotating in opposite directions to generate high compressive force…
The roller crusher, also known as the double-roll crusher or double-roll sand maker, utilizes two motors to drive two sets of roller shafts to crush and grind materials through compression. This roller crusher is suitable for fine crushing operations with feed sizes under 80mm and finished product sizes ranging from 50 mesh to 20mm. Capable of processing materials with compressive strength ≤160MPa, it serves as an ideal production equipment for construction sand, road-building sand, asphalt concrete, and cement concrete aggregates, suitable for transportation, construction, and other industries. 1.Roller Crusher Feed Size: 25-100mm Production Capacity: 2-400 t/h Suitable Materials River pebbles, calcite, quartzite, marble, cobblestones, bentonite, iron ore, bluestone, quarry rock, slag, limestone, weathered sand, diabase, granite, basalt, etc. Application Scope Suitable for crushing in mining, cement, highway, railway, coal, metallurgy, building materials, and other industries. 2.Working Principle The roller crusher performs crushing operations through roller wheels. Material enters between the rollers through the feed opening and is crushed by compression. A fixed gap exists between the two rollers. Increasing this gap produces larger output particle sizes, while the compression spring forces the gap to narrow, resulting in finer output. By adjusting the gap, the output particle size can be precisely…

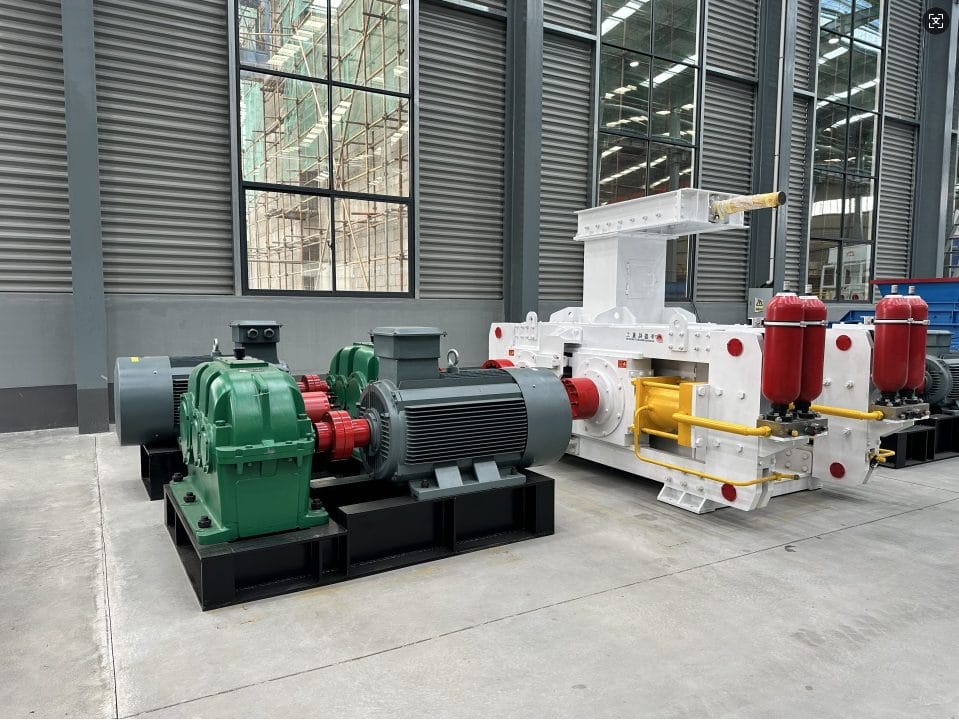

1.High-Pressure Roller Mill In The Stone Crusher Machine Series The high-pressure roller mill is a simple-structured, reliable machine capable of fine and ultra-fine grinding operations with controllable fineness modulus. Our design specifically addresses current market demands for crushing hard materials, significantly enhancing crushing capacity compared to other high-pressure roller mills. It is suitable for fine crushing of hard and medium-hard materials with compressive strength below 250 MPa and moisture content under 10%. The high-pressure roller mill is also applicable in mineral processing, power generation, chemical, cement, refractories, abrasives, construction, and other industrial sectors for medium and fine crushing of various high-to-medium hardness ores, rocks, industrial waste residues, and other single raw materials or mixed materials blended with clay. It delivers superior performance compared to conventional high-pressure roller mills, particularly in producing crushed stone, coal, and coal-based grinding materials for the construction materials and power industries. It is also widely applicable in the steel grit crushing industry. 2.Why Choose Huashengming Hydraulic system enables convenient and effortless roll gap adjustment while safeguarding overall machine safety. Huashengming’s proprietary casting process significantly extends roller surface lifespan, achieving up to 20,000+ operating hours. Steel rollers deliver high economic efficiency in pebble processing applications. Suitable Materials…

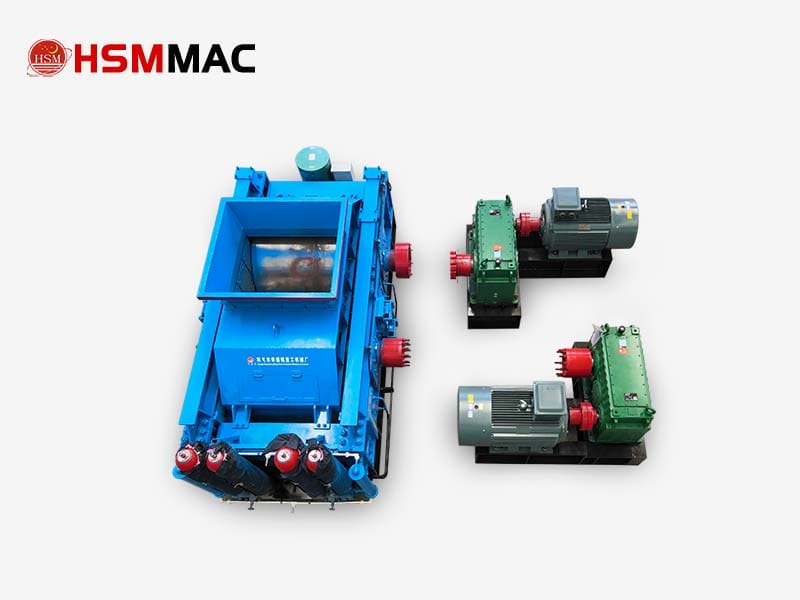

What is the working principle of smooth roll crusher? The working principle of the smooth-surface roller crusher is based on the squeezing and grinding action generated by the relative rotation of two rollers. Uniform crushing of materials is achieved by controlling the gap between the rollers. 1. Core Crushing Mechanism Material Entrapping and Compression Material falls from the feed inlet between the two rollers and is drawn into the gap by roller surface friction. The two rollers (fixed and movable) rotate at low speeds in opposite directions (typically <4 m/s linear velocity), applying high compressive pressure to the material. This generates internal fractures and causes fragmentation. Smooth Roll Characteristics: Featuring a smooth roll surface, this mechanism primarily relies on compression and grinding forces. It is suitable for medium-hard or brittle materials (e.g., limestone, coal), producing well-shaped particles with low over-crushing rates. Overload Protection Mechanism When non-crushable objects (e.g., iron pieces) enter, the movable roll automatically retracts via springs or a hydraulic system, widening the roll gap to discharge foreign objects before resuming its original position, preventing equipment damage. Discharge Control Crushed material discharges from beneath the roll gap, with particle size directly determined by the gap width (typically adjustable from…

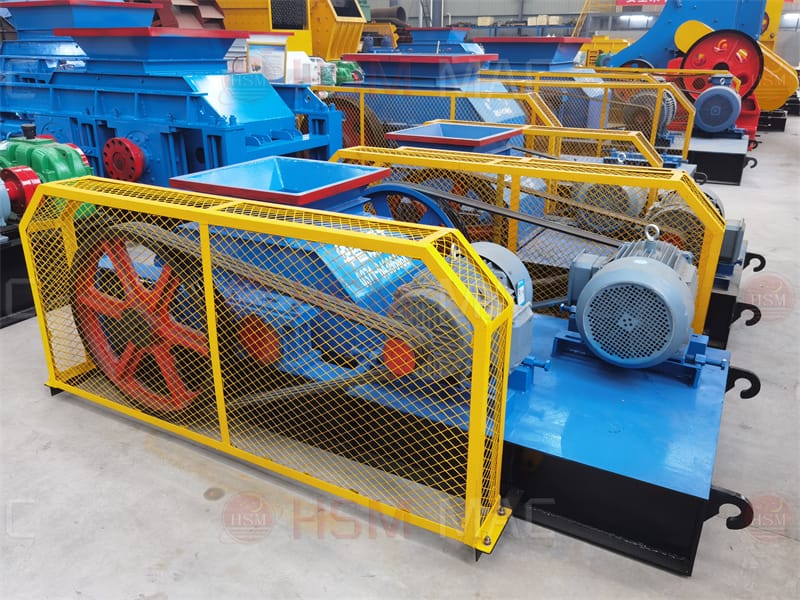

What is the 10-20 TPH spring double roller crusher designed for? The 10-20 TPH spring double roller crusher is tailored for small sand plants. It handles medium-hard and brittle materials efficiently. This equipment guarantees stable operation for long periods because it uses high-strength, wear-resistant materials. How does it ensure effective crushing? The machine uses an intelligent hydraulic system and spring mechanism to adjust the roller gap automatically. This ensures optimal crushing results. Additionally, it provides precise particle size control, delivering uniform final products. Is it environmentally friendly? Yes, it is. The spring double roller crusher has a sealed crushing chamber to reduce dust emissions. This design meets modern environmental standards and minimizes pollution in your plant. What are its main advantages? The 10-20 TPH double roller crusher offers five key benefits: Cost-effectiveness: Its affordable price suits small plants with limited budgets. High efficiency and energy savings: Optimized motors and hydraulic systems reduce power consumption. Simple maintenance: High-strength materials for rollers and liners extend their lifespan and lower replacement frequency. Eco-friendliness: The sealed design limits dust and noise pollution. Versatile adaptability: It handles various medium-hard and brittle materials, increasing your investment returns. Why is it ideal for small-scale sand plants? This…
Huashengming crusher mini(such as double-roll, jaw, and hammer models) require maintenance that combines daily operating procedures with regular inspections to ensure equipment longevity and operational efficiency. 1. Daily Inspection and Cleaning Pre-startup Checks Fasteners: Daily inspection of bolts and nuts for looseness (e.g., crushing chamber mounting bolts, motor base screws), tightening as needed. Crushing Chamber Cleaning: Remove residual material to prevent blockages or component corrosion; verify unobstructed inlet/outlet ports. Electrical System: Inspect cable and control box insulation to eliminate leakage risks. Monitoring During Operation Abnormal Vibration and Noise: Immediately shut down upon detecting anomalies to investigate bearing wear or rotor imbalance. Lubrication Status: Observe for grease leakage and verify normal bearing temperatures (shut down for inspection if overheating occurs). Post-Shutdown Maintenance Complete Chamber Cleaning: Ensure no residual material remains in the crushing chamber before shutdown to prevent material caking. Surface Cleaning: Remove dust and oil residue from equipment surfaces to prevent corrosion (avoid direct high-pressure water jets on electrical components). 2. Lubrication System Maintenance Regular Lubrication Bearing Lubrication: Check grease level per shift; replenish every 8 operating hours. Completely replace grease every 3-6 months (use high-temperature grease in summer, low-temperature grease in winter). Hydraulic System: Inspect hydraulic oil cleanliness; filter…
