Product description

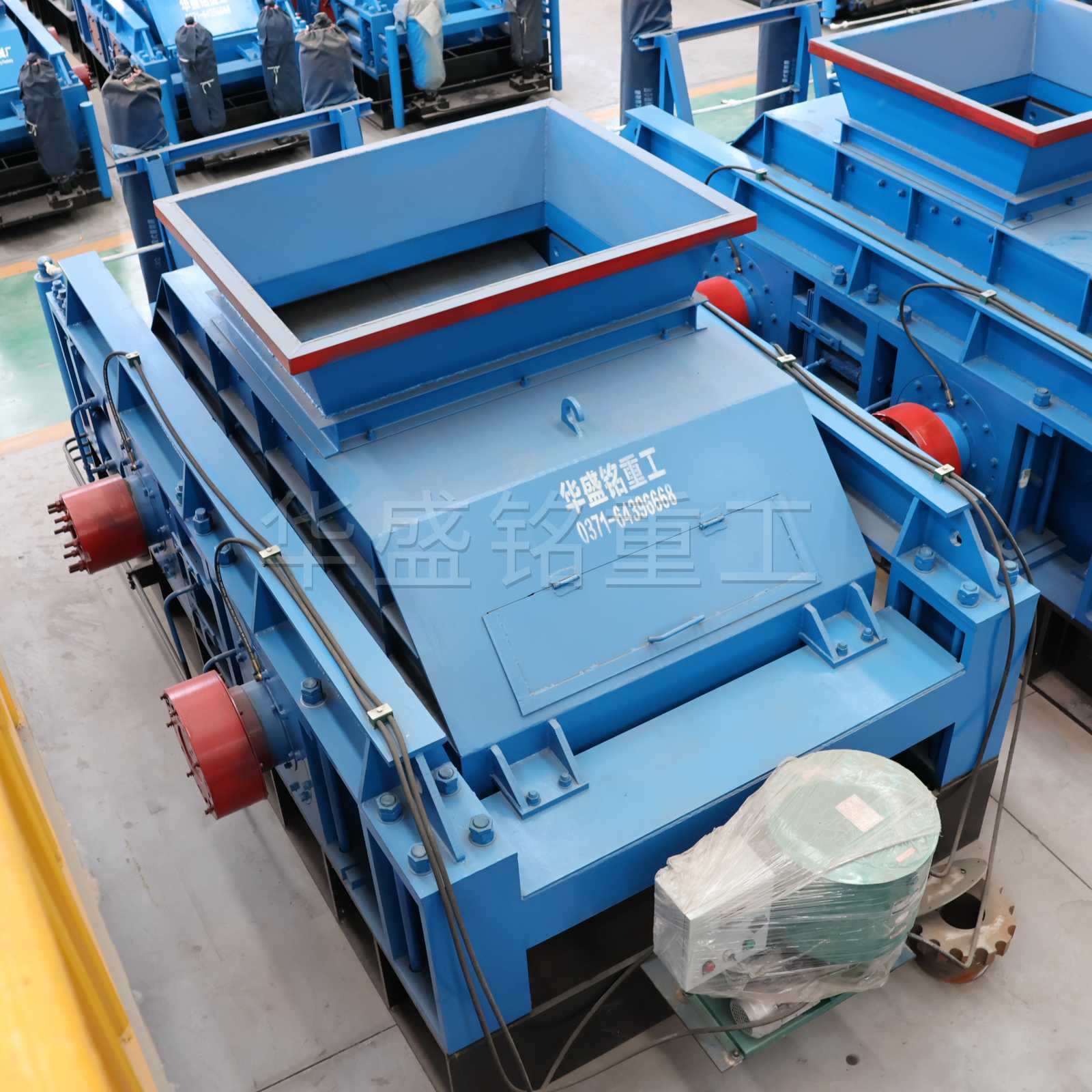

Ceramic crusher is a piece of equipment specially used to crush ceramic materials. Ceramics is a brittle material commonly used to make crafts and building materials such as porcelain and bricks. It uses two motors to drive two pairs of rollers to squeeze and grind materials. Ceramic crushers are widely used in the fields of recycling ceramic waste, residual materials in ceramic production and ceramic waste bricks. They provide efficient and stable ceramic material crushing and reuse solutions, promoting resource recycling and environmental protection.

Why choose Huashengming

1. The ceramic crusher is better than the hammer sand making machine and does not need to replace wearing parts.
2. The sand has full grain shape, reasonable gradation, low over-grinding rate and high output.
3. Ceramic crushers have huge advantages over hammer crushers and impact crushers. The average service life of the roller sleeves is more than 2 years.
4. Huashengming’s high-chromium manganese steel wear-resistant material containing rare metal roller skin has applied for a national patent. The discharge particle size can be accurately adjusted and has applied for a national patent. The ceramic crusher roller has applied for a national patent.

Performance Advantages

1. The finished product has good grain shape and less over-powder.
2. The particle size of the finished product is simple and controllable
3. Reasonable structure, no clogging, no stickiness
4. Dual motors, full of power
5. The roller skin is made of highly wear-resistant manganese steel, which is more durable.
6. Low investment cost, economical and easy to use

Youtube: https://www.youtube.com/@hsmcrusher

Facebook：https://www.facebook.com/hsmcrusher/

Related links on this site：http://m.bbjnm.com/products/spring-roll-crusher

suitable for more than 200 types hard materials

River pebble sand making
Granite sand making
Molybdenum ore beneficiation
Limestone sand making

Sand Production Application
Mineral Processing Crushing Applications

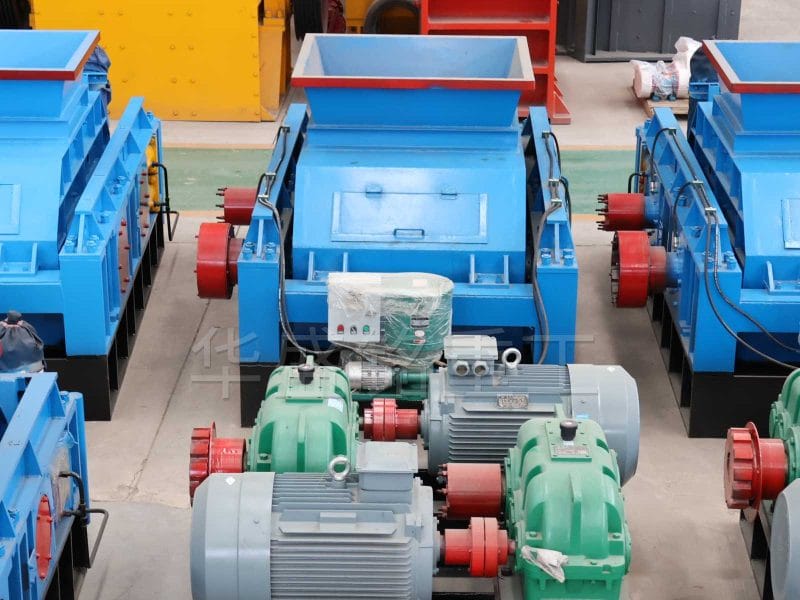

Ceramic crusher uses two sets of independently driven rollers to crush materials by squeezing and grinding shear forces generated by relative rotation. The material falls between the two rollers through the feeding port. After being squeezed and crushed by the pair of rollers, the finished product falls naturally.
When encountering extremely hard or unbreakable materials, the rollers can automatically retreat by the action of the hydraulic cylinder or spring, making the gap between the two rollers The gap between the two rollers increases, and the hard or unbreakable materials naturally fall down to ensure that the machine is not damaged.
The two oppositely rotating rollers can adjust the pressure of the hydraulic cylinder or spring to control the discharging granularity of the product.

Technical parameters

Model	Feeding?size (mm)	Discharging?size(mm)	Capacity (t/h)	Motor?power (kw)	Weight (t)	Dimension (mm)
2PG400×250	<35	≤2-8	2-10	2×5.5	1.3	2110×870×810
2PG610×400	<65	≤2-20	5-20	2×15	3.9	3510×1420×1030
2PG750×500	<75	≤2-25	10-40	2×18.5	9.5	4210×1630×1260
2PG800×600	<80	≤2-25	12-45	2×22	10.8	4505×1780×1320
2PG1000×700	<100	≤3-30	20-65	2×30	14.9	5310×2175×1595
2PG1200×800	<120	≤3-35	35-80	2×37	25.5	6290×2270×1870
2PG1500×800	<130	≤3-45	50-120	2×75	33.7	7460×2410×2290
2PG1600×1000	<150	≤3-50	60-140	2×90	41.2	8220×2680×2475
