Heavy Hammer Crusher

Applicable materials:Crushing medium-hard or brittle materials, big material, such as coal, cement, gypsum, alumen, brick, tile, limestone, glass etc.

Feed size:1400 mm
Productive capacity:50-400 t/h

Application scope:Crushing medium-hard or brittle materials, big material, such as coal, cement, gypsum, alumen, brick, tile, limestone, glass etc.

get quote
WhatsApp

Product description

Heavy Hammer Crusher with feature of large feeding sizes, it it very suitable for processing big raw material with size 450-1400mm to small granularity below 100mm, which are widely used for mine, cement, building material, chemical industry and so on. It it suitable for crush raw material with compression strength not more than 200Mpa, such as limestone, rock, plaster, coal, coal gangue etc.

suitable for more than 200 types hard materials

River pebble sand making
Granite sand making
Molybdenum ore beneficiation
Limestone sand making

Sand Production Application

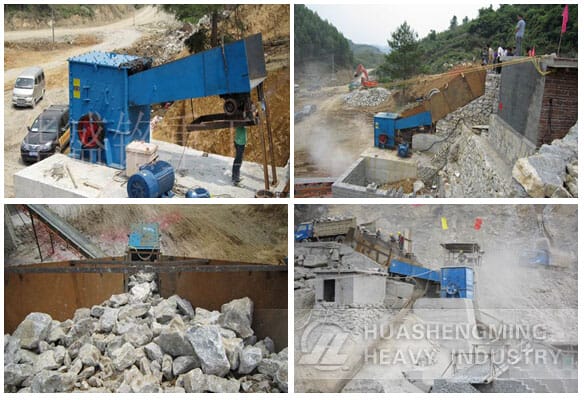

Mineral Processing Crushing Applications

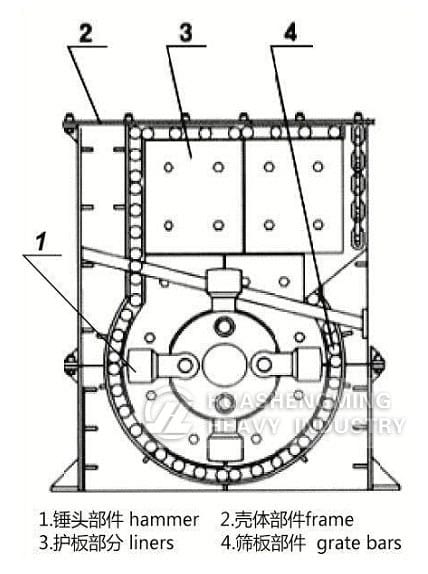

1. Heavy hammer crusher hammers do high-speed circular motion along with rotors driven by motor.

2. After fed material into the crusher, large material are stacking on the shelf which is particular to heavy hammer crusher.

3. Raw materials are smashed into smaller pieces by hammers. Right following in the first crushing, unqualified pieces hit against the impact plate with new fed material at a tangent to circular motion of hammers.

4. So once for all, material undergo two steps of crushing, from coarse to medium size then to qualified small size.

5. Finished product are sieved through screen and discharged at a uniform particle size.

Technical parameters

Model	Rotor?diameter (mm)	Rotor?diameter (mm)	Capacity (t/h)	Max?Feeding?size (mm)	Suitable?for material	Power (kw)
700×1000	700	1000	50-80	500	All?kinds?of material?with strength?no more?than 300Mpa	45-55
900×1200	900	1200	70-100	800		75-90
1000×1000	1000	1000	90-120	800		75-90
1200×1200	1200	1200	130-160	900		110-132
1400×1400	1400	1400	190-210	1000		132-160
1600×1600	1600	1600	250-300	1000		160-210
1800×1800	1800	1800	300-400	1200		210-280
