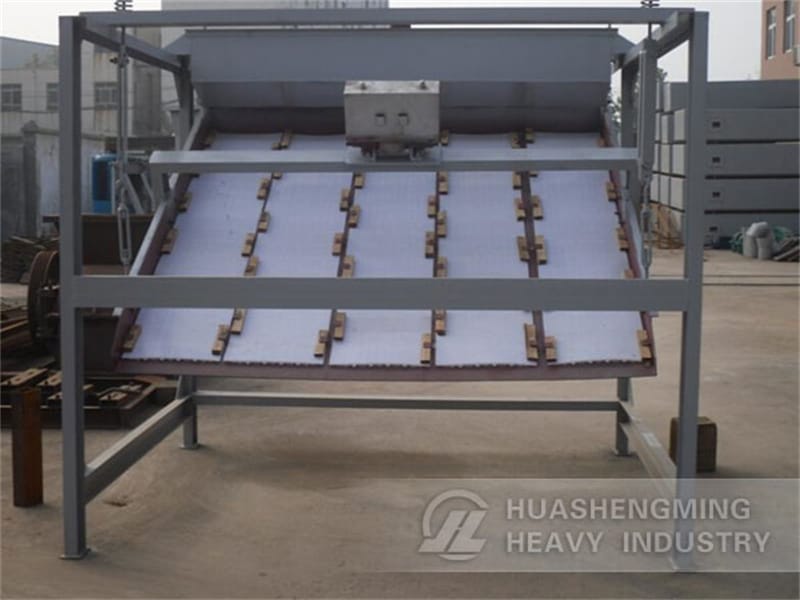

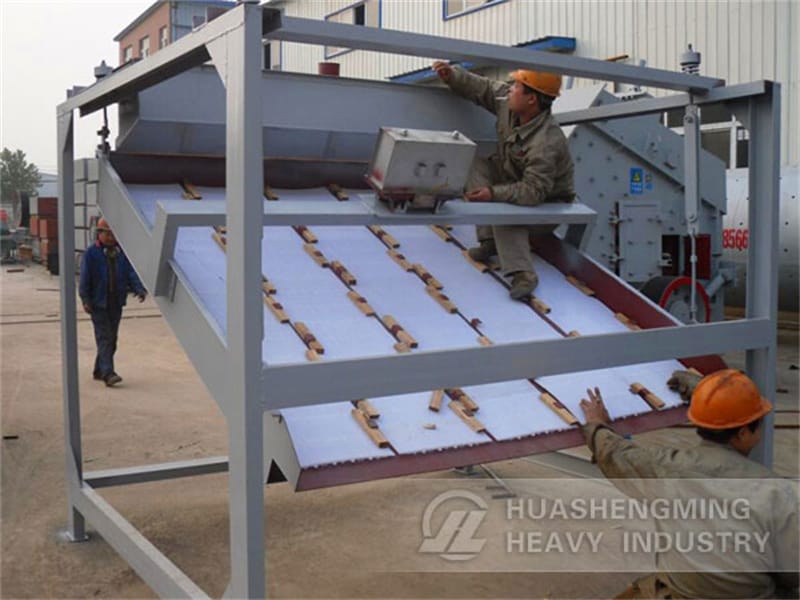

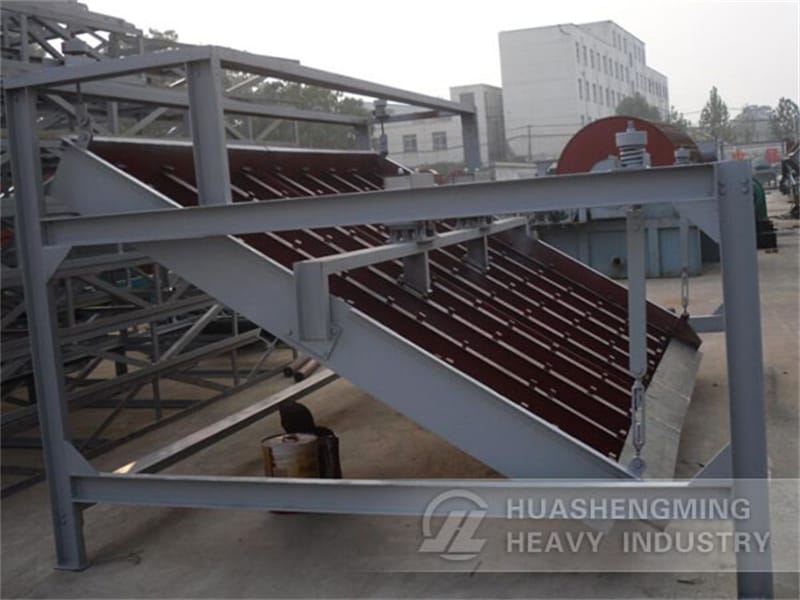

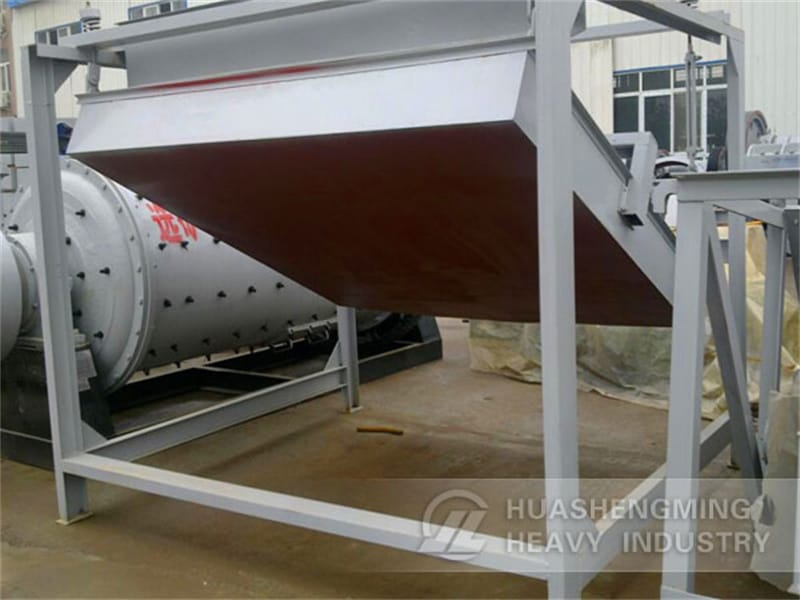

High Frequency screen is always used in processing minerals such as ferrous metals including hematite & magnetite and nonferrous metals including Lead, Zinc, Gold and Silver etc. This machine works in a recirculating network with ball mill, which can upgrade the fineness of ferrous and nonferrous metals.
High efficiency, small amplitude and high frequency of screening; it differs from the conventional screens with breaking of the surface tension of pulp and small granularity high speed vibration on sieve cover and accelerates the separating of large-density useful mines and increase the contacting probability of the materials smaller than output granularity and the sieve pore. Therefore produce good condition and make the materials smaller than the output granularity, especially the big-density materials and pulp get through the sieve pore together.
| Model | Screen?area (m2) |
Feeding?density (%) |
Capacity (t/h) |
Power (kw) |
| GPS-4 | 4.5 | 30%-40% | 15-25 | 0.72 |
| GPS-5 | 5.2 | 30%-40% | 20-30 | 1.1 |
| GPS-6 | 6 | 30%-40% | 24-36 | 1.5 |
| GPS-8 | 8.1 | 30%-40% | 32-48 | 2.2 |
