Primary Crusher
Applicable materials:Stone mining, metallurgy industry, building material, highway, railway and chemical etc.
Application scope:Stone mining, metallurgy industry, building material, highway, railway and chemical etc.
PF series Impact Crushers can crush kinds of soft and medium-hard ore, for coarse, medium and fine crushing, in primary and secondary crushing process. Widely used in mining, construction, chemical, cement, metallurgical industries etc.
Primary Crusher

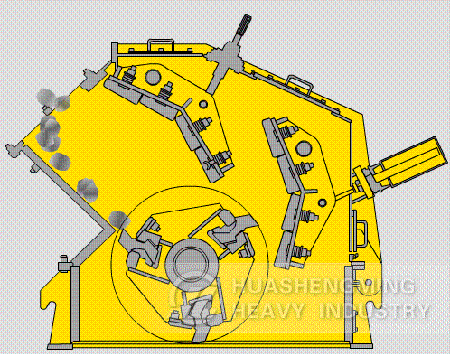

When the impact crusher works, the rotor rotates with high speed when the crusher is driven by motor. Materials enter crushing chamber and impact with hammers on the rotor, and are thrown to impact plate for being crushed, and then are rebounded back to hammers for being crushed again. The materials enter the first chamber, the second chamber, and the third chamber for being crushed repeatedly until they are crushed into suitable size. The final product is discharged from the outlet. Product size and shape can be adjusted by adjusting space between impact plate and rotor.
| Model | Rotor?Specification?(mm) | Max.?feed?size?(mm) | Capacity (t/h) |
Power (kw) |
Weight (t) |
Overall?dimension (L×W×H)?(mm) |
| PF0807 | Φ750×700 | 300 | 15-30 | 45 | 8.1 | 2210×1490×2670 |
| PF1007 | Φ1000×700 | 300 | 25-60 | 55 | 9.5 | 2400×1558×2660 |
| PF1010 | Φ1000×1050 | 350 | 50-80 | 75 | 12.2 | 2400×2250×2720 |
| PF1210 | Φ1250×1050 | 350 | 70-120 | 110 | 14.1 | 2690×2330×2890 |
| PF1214 | Φ1250×1400 | 400 | 110-180 | 132 | 18.6 | 2690×2688×2890 |
| PF1315 | Φ1320×1500 | 500 | 160-250 | 200 | 23.4 | 3096×3273×2667 |
| PF1320 | ???Φ1320×2000 | 600 | 200-310 | 315 | 27.5 | 3280×3570×2920 |
