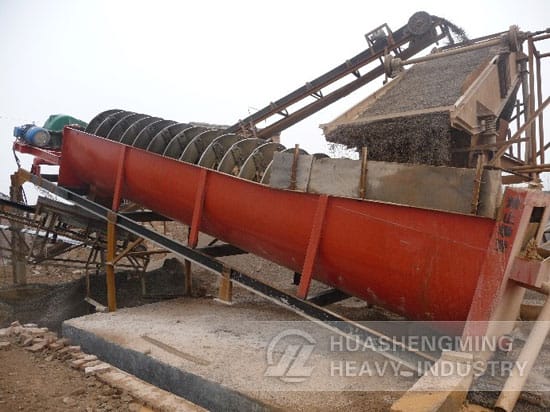

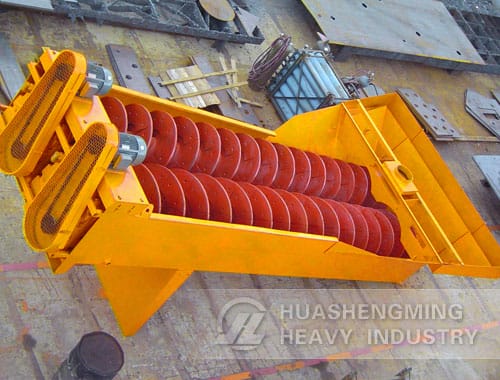

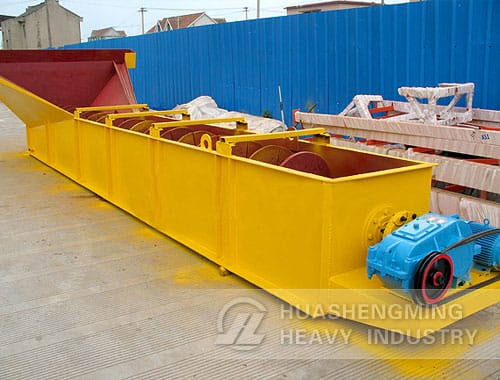

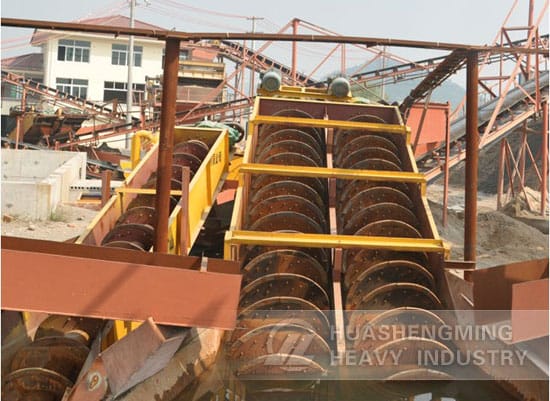

The XSL series sand washing machine is suitable for the washing and selecting, classifying, and trash-extracting in industries like metallurgy, construction, water and electricity, etc. This series is suitable for washing and selecting materials of fine and rough granularity.
When the machine is working, the material goes into the input part. It will push the material to the output through the machine. Surface dust and impurity are removed when the material from the input part to the output part is pushed, mixed and washed. The final product goes out through the discharge outlet and the mud and impurity will go out through overflow part.
| Model | Spiral?diameter??(mm) | Capacity?(t/h) | Power?(KW) | Weight??(t) |
| XSL-50 | 500 | 12-20 | 3 | 2.55 |
| XSL-75 | 750 | 40-55 | 5.5 | 3.82 |
| XSL-100 | 1000 | 60-75 | 7.5 | 4.87 |
| XSL-120 | 1200 | 80-100 | 11 | 6.9 |
| XSL-150 | 1500 | 100-130 | 18.5 | 8.8 |
| XSL-200 | 2000 | 130-160 | 22 | 19 |
| 2XSL-100 | 1000 | 120-150 | 7.5×2 | 8.9 |
| 2XSL-120 | 1200 | 160-200 | 11×2 | 13.1 |
